| Quantity: | |
|---|---|
Ningbo, China
L/C, T/T
500000mt

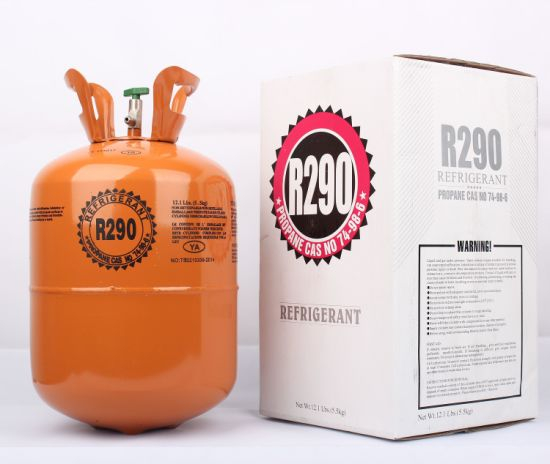

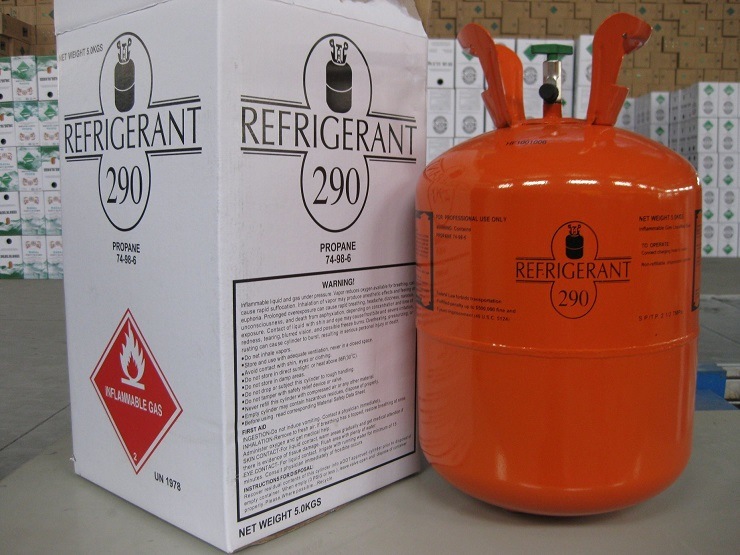

| Refrigerant Gas R290 Propane Gas | |
| Physical Properties | |
| Molecular Formula | CH3CH2CH3 |
| Molecular Weight | 44.1 |
| Boiling Point ºC | -42.1 |
| Freezing Point | N/M |
| Critical Temperature (ºC) | 96.6 |
| Critical Pressure (MPa) | 4.248 |
| ODP | 0 |
| GWP | 3.3 |
| Quality Index | |
| Purity | ≥ 99.90% |
| Sulfur content ppm by weight | less than 1.0 |
| Water content ppm by weight | less than 10 |
| Acidity ppm by weight | less than 1.0 |
| Evaporation residue | ≤ 0.01% |
| Appearance | Colorless and clear |
| Odor | Odorless |
| Application | |
| for refrigerant, for central air conditioning,heat pump, air conditoning and other small household refrigeration system, replacement of R22 | |
| Packing, Payment and Delivery | |

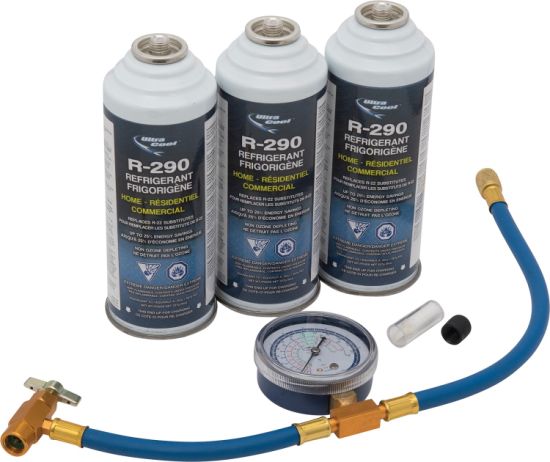

| Packing | 1. Small Can 300g/360g/380g |
| 2. Disposable cylinder: 5.5KG/13.4L, 9.5KG/22.3L | |
| 2. Refillable cylinder 48KG/118L,164KG/400L,328KG/800L etc. | |
| 3. ISO-TANK 10T/24m3 | |
| MOQ | 20'GP |
| Payment | 1)By T/T 30% as deposit, the 70% balance against copy of B/L |
| 2)L/C payment term is also negotiable | |
| Delivery | 20-25days after receiving the deposit |
| About Sample | |
| Samples is ok, but refrigerant is dangerous goods in law, ship agent will not accept mixed stuffing with other goods, so the high sea freight and delivery cost is better been taken into consideration | |
Physical properties of R290
At -25°C, the pressure of R 290 is similar to that of R22, higher than R134a and lower than R404A. The standard boiling point of R290 is similar to R22, and the critical temperature is also close to R22, but the exhaust temperature of R290 is lower than that of R22. Therefore, the pressure of R290 is lower than R22. In other words, the suction temperature of R290 can be higher and the evaporation temperature can be lower. some. At 45°C condensing temperature, 32°C suction temperature and no subcooling, the volumetric cooling capacity of R290 is similar to that of R22, which is 1.5 times that of R134a. It is 2.5 to 3 times that of R600a, which means that for household refrigerators with the same cooling capacity, the structure of the R290 refrigerator refrigeration system is smaller and the overall space occupied by the refrigerator is reduced.
| Refrigerant Gas R290 Propane Gas | |
| Physical Properties | |
| Molecular Formula | CH3CH2CH3 |
| Molecular Weight | 44.1 |
| Boiling Point ºC | -42.1 |
| Freezing Point | N/M |
| Critical Temperature (ºC) | 96.6 |
| Critical Pressure (MPa) | 4.248 |
| ODP | 0 |
| GWP | 3.3 |
| Quality Index | |
| Purity | ≥ 99.90% |
| Sulfur content ppm by weight | less than 1.0 |
| Water content ppm by weight | less than 10 |
| Acidity ppm by weight | less than 1.0 |
| Evaporation residue | ≤ 0.01% |
| Appearance | Colorless and clear |
| Odor | Odorless |
| Application | |
| for refrigerant, for central air conditioning,heat pump, air conditoning and other small household refrigeration system, replacement of R22 | |
| Packing, Payment and Delivery | |
| Packing | 1. Small Can 300g/360g/380g |
| 2. Disposable cylinder: 5.5KG/13.4L, 9.5KG/22.3L | |
| 2. Refillable cylinder 48KG/118L,164KG/400L,328KG/800L etc. | |
| 3. ISO-TANK 10T/24m3 | |
| MOQ | 20'GP |
| Payment | 1)By T/T 30% as deposit, the 70% balance against copy of B/L |
| 2)L/C payment term is also negotiable | |
| Delivery | 20-25days after receiving the deposit |
| About Sample | |
| Samples is ok, but refrigerant is dangerous goods in law, ship agent will not accept mixed stuffing with other goods, so the high sea freight and delivery cost is better been taken into consideration | |
Physical properties of R290
At -25°C, the pressure of R 290 is similar to that of R22, higher than R134a and lower than R404A. The standard boiling point of R290 is similar to R22, and the critical temperature is also close to R22, but the exhaust temperature of R290 is lower than that of R22. Therefore, the pressure of R290 is lower than R22. In other words, the suction temperature of R290 can be higher and the evaporation temperature can be lower. some. At 45°C condensing temperature, 32°C suction temperature and no subcooling, the volumetric cooling capacity of R290 is similar to that of R22, which is 1.5 times that of R134a. It is 2.5 to 3 times that of R600a, which means that for household refrigerators with the same cooling capacity, the structure of the R290 refrigerator refrigeration system is smaller and the overall space occupied by the refrigerator is reduced.
